Hello…
Prior to my previous section, my next step is to gather as many old recyclable stuff as possible for the mini robot
building process. Nonetheless, those things must match my criteria which are
reliable and handy. Upon clearing my stores, I have found some useful stuffs
that suits my purpose.
a)
Compilation of old CDs
I
used it as the main chassis. Few holes were drilled on it with correct
dimensions. Nuts and bolts are used to connect all the pieces.
b)
Old stacks of ice-cream stick. Stack of Wooden sticks are strong and usable to hold
the sensors.
c)
Old screws, nuts, bolts and washer. They are my good companion whenever I want
to merge different parts and shape into one.
On
the other hand, I have included many other electronic components to complete my
design.
d)Jumper
wires.
e)Soldered
and detachable components like potentiometer, buzzer,ic holder, led, RGB led,
positive and negative rails, ultrasonic ranging sensor holder.
f)Bumper
switches
g)LDR

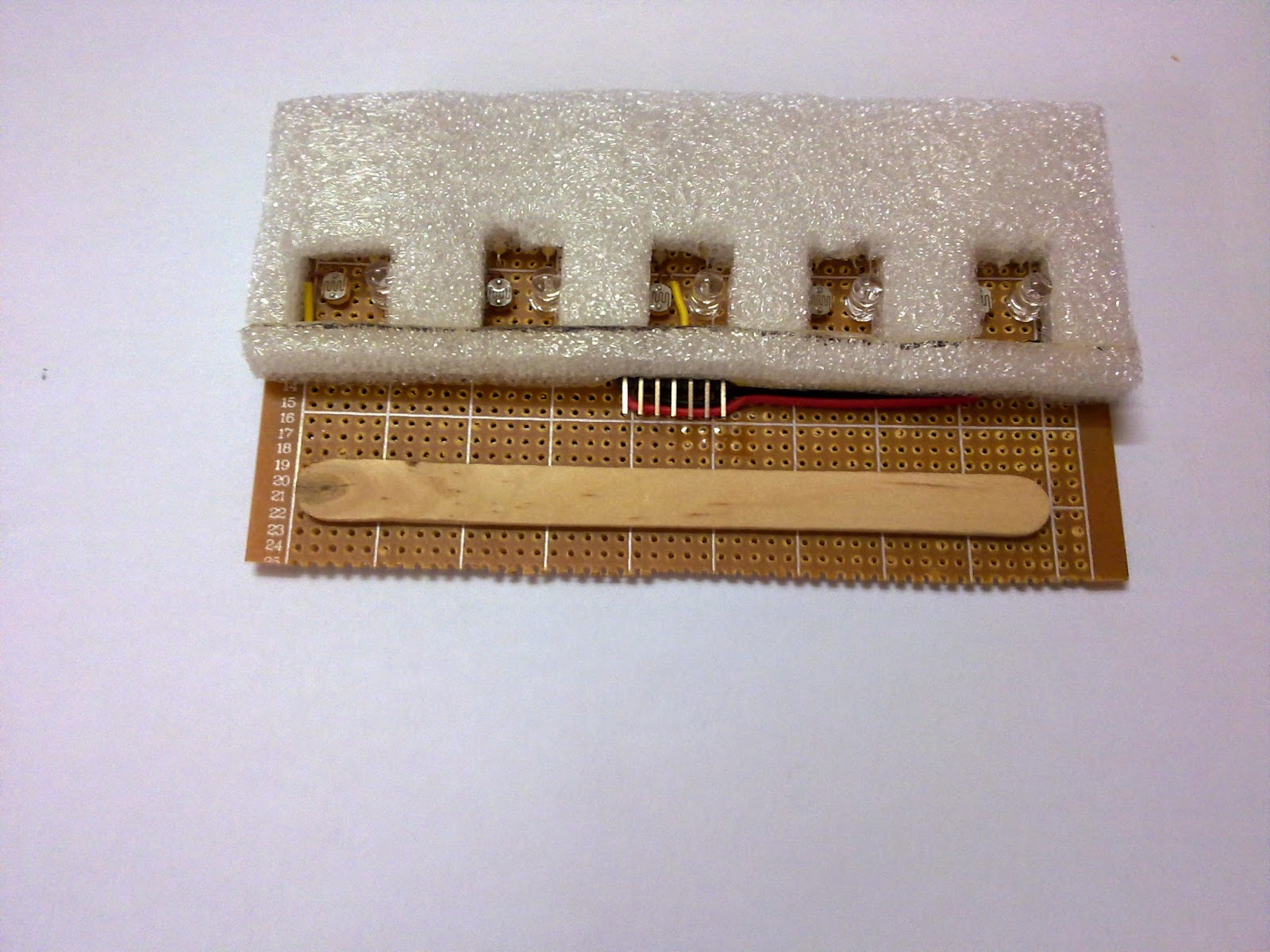

with super bright red color led as line follower robot’s sensor.
h)Self-made Motor
shield (front view and back view)
i)Tamiya
gearbox sets.
j)Bluetooth
module (HC-05)
k)Ulrasonic
Ranging Sensor
l)Lightweight
Servo motor
m)Power
Bank
n)Arduino
Uno or CIKU as microcontroller
Tools
needed as usual
Mini hand drill(1.0mm, 1.5mm and 3.0 mm)
In my next section, I will start to share on how to build up a small robot.
Thank you.
